有机肥搅拌机

双轴搅拌机

产品描述:双轴搅拌机 用途及特点: 双轴搅拌机是通过两组带有螺旋叶片的轴相对转动,加水对粉状物料进行喷湿搅拌输送,使粉状物料达到可控湿度。该设备主要适用于肥料行业原料的加湿混...
服务热线:18603847333
立即咨询

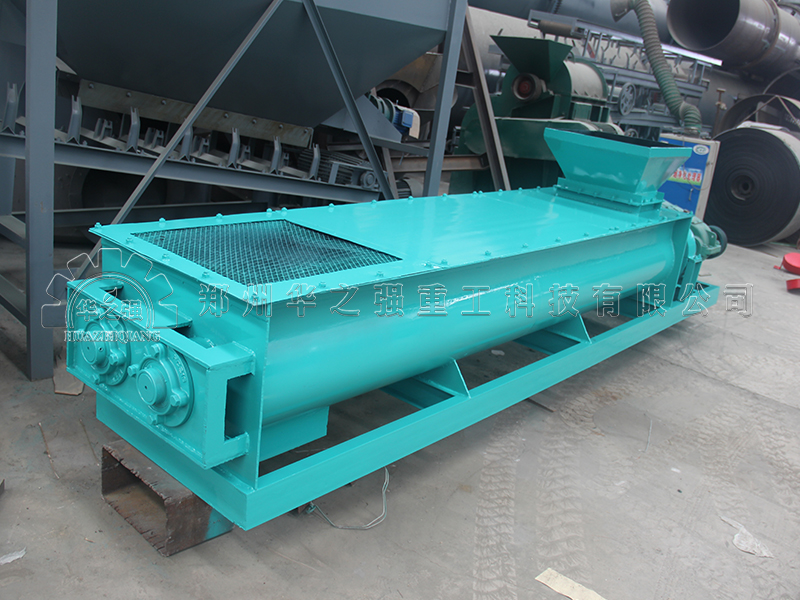

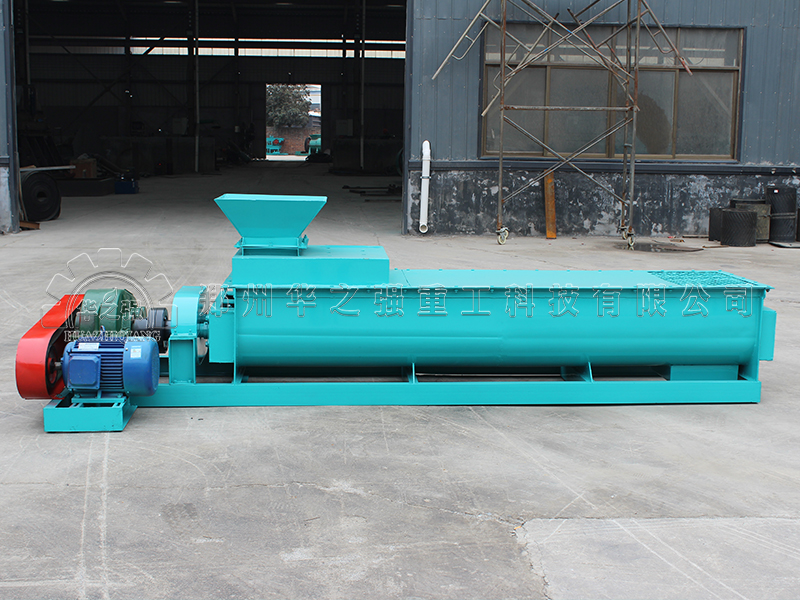

双轴搅拌机
用途及特点:
双轴搅拌机是通过两组带有螺旋叶片的轴相对转动,加水对粉状物料进行喷湿搅拌输送,使粉状物料达到可控湿度。该设备主要适用于肥料行业原料的加湿混合,使物料充分搅拌,并兼具输送功能。当定量的生料粉由下料口流入搅拌槽中,经若干个具有相对压力的水雾化撒向生料粉,由定性长度的轴经搅拌叶搅匀后形成含水一致的球核。整个搅拌分为雾化区,拌匀区,卸料区三个区域。搅拌叶耐磨性能好,使用寿命长。

Double Axis Mixer
Use and Features:
The double axis mixer is rotated through two groups of screw shafts with spiral blade, and water is added water to the powder material for spraying wet mixing transportation, so that powdery material can achieve controllable humidity. The equipment is mainly suitable for humidification and mixing of raw materials in the fertilizer industry, so that the materials are fully mixing and this machine have the function of conveying too. When the quantity of raw material is poured into the mixing tank from the outlet, the raw material is atomized by a number of water with relative pressure, which is stirred by the mixing shaft of the qualitative length to form a uniform water-containing core. The whole agitation is divided into three areas: atomization area, mixing area and discharge area. The agitator leaves have well wear resistance and long service life.

构造及工作原理
双轴搅拌机由驱动部分与本体部分组成。
驱动部分由电机、联轴器、减速机组成。然后由滚子链带动本体上的主动轴转动,并通过主动轴上的齿轮,带动从动轴上的齿轮及从动轴同时转动。
当物料由进料口进入搅拌槽后,由装有螺旋叶片的主、从动轴螺旋推动物料且搅拌后,由出料口送出,然后由运输机械装走。
物料加水是与物料搅拌同时进行的,水是由进水管及喷嘴组成的喷水装置供给的。

技术参数

型号 减速机型号 功率
(kw)
转速
(r/min)
产量
(t/h)
重量
(kg)
400 400-1V-2 11 52 20 2350
450 500-1V-2 15 52 25 2620
500 500-1V-2 18.5 53 30 2980
550 650-1V-2 22 53 35 3450
600 650-1V-2 30 52 40 3850
650 750-1V-2 37 52 45 4260
